Sheet Metal Carbon Steel Brass Aluminum Fiber Laser Cutting Machine 1000W Plate Laser Cutter
VLF1325L is a most valuable entry-level fiber cutting machine, using the self-developed machine gantry structure, the whole machine use highstrength seamless steel for a better rigidity, high temperature annealing machine, rack for 20 years without deformation, accompanied by 200w high quality domestic fiber optic devices comes with excellent beam to make that the cutting lines more sophisticated and more more efficiently. The rail screw is imported highprecision brand, also additionally equipped with a dust removal device, drag feeding device, high temperature alarm and industrial cooling devices.

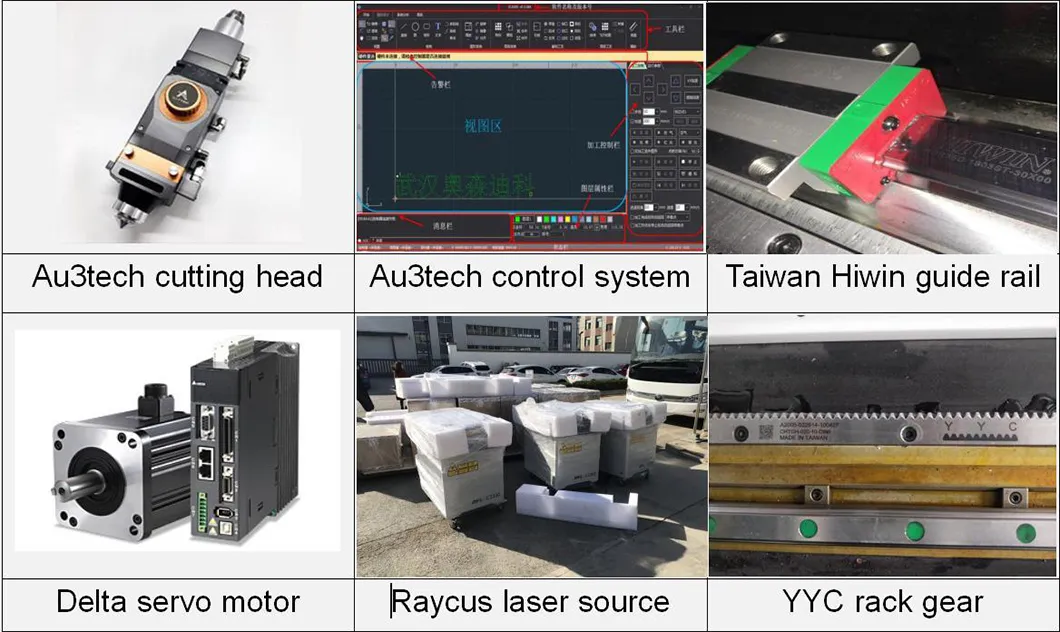

High quality laser source(Raycus or IPG): 1000W 1500W 2000W
AU3TECH Laser Head
AU3TECH Control System
Taiwan Delta Servo Motor
Taiwan HINWIN Guide Rail(X:25MM, Y : 35MM)
Taiwan APEX Rack Gear
Taiwan TBI Ball Screw
Japan SMC/Taiwan Air TAC Pneumatic Components
French Motovario Reducer
French Schneider Electric Device
Auto Partitioned Exhausted System
Tongfei Water Chiller
|1||X axis travel||1300mm|
|2||Y axis travel||2500mm|
|4||X/Y axis positioning accuracy||±0.01mm|
|5||X/Y axis repeat positioning accuracy||±0.02m|
|6||X/Y axis maximum moving speed||60m/min|
|8||Transfer method||Guide rail and gear rack|
|9||Maximum load of working platform||1400KG|

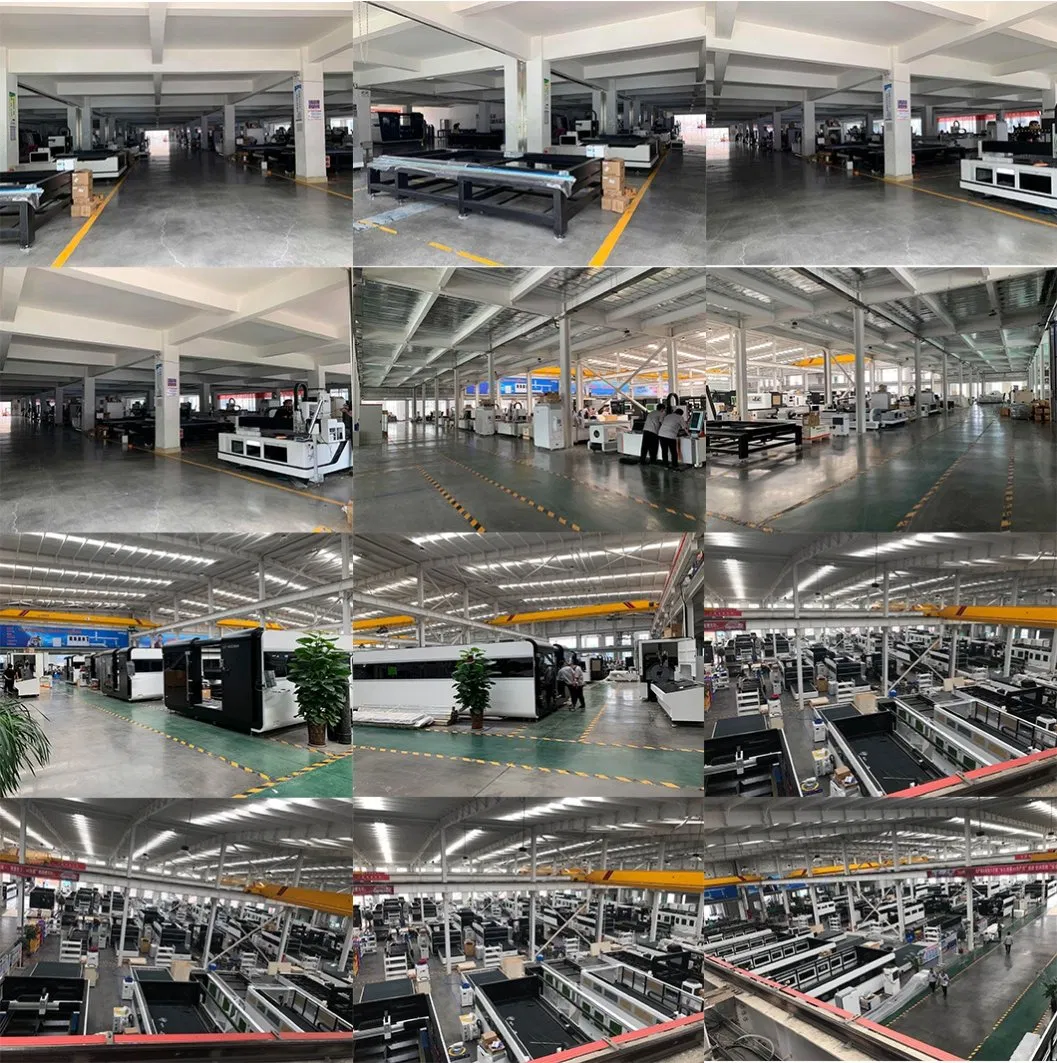

Customers Visit Factory
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City, Shandong Province of China. It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers. These years, Vmade has sold their products to all over the world. Such as USA, Canada, Brazil, Russia, England, Australia, more than 60 countries and do OEM service to more than 15 dealers and distributors. Vmade is warmly welcomed by customers with their continuously enthusiasm, Frist-Class before/after sales service, efficient reaction and the perfect machine quality.The name of Vmade originate from most of the buyers' expectation. "V", means the VIP design and production which specially customized to each client; "made", means we use hundred percentage of our attention to focus on every order, finalized all clients' entrust with perfect products which are elaborate made.Vmade CNC, keep innovation, with high passion, to provide perfect project for every client. Welcome join Vmade, we will never let you down!
1. Professional and free after-sales training
Our company has the professional after-sales technical team , providing customers prompt door-to-door or online technical guidance, which can ensure customers are skilled in the equipment application in a short time . At the same time , after-sales technical team would visit customers regularly ,asking customers the using of equipment and upgrade the software of equipment for customers.
2. After-sales outlets are all over the world
Our company has global customer service center , it has 16hours/day online customer service, which can solve all kinds of problems for domestic and foreign customers, our customer service will feedback problems to technical department and productive department,which would give you a satisfactory process of solving problem , ensuring constantly creation of money for you.
3. The feedback of customer satisfaction survey
Company 's after-sales service and technical department will visit customers regularly , inquiring your degree of satisfaction about the equipment and service , we would form proposal according to customer's feedback, the aim of it is finding continuous improvement.
4. The warranty commitment of equipment
The machine's warranty is on three years( not including optical devices and quick-wear parts), except that ,control software is free to upgrade . At the same time ,we guarantee that we will give you the most satisfactory answer for your question whether it is inside or outside of the machine..
1.What is fiber laser?
A fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped. This is done by coupling the
radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power.
What's material can fiber laser cut?
All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
2.Which fiber source does Vmade applied?
IPG - Made in USA.
Raycus- Made in China;
Maxphotonics - Made in China;
3.What is Vmade Fiber laser advantages?
>Excellent beam quality (light-concentrating beam from optical fiber)
>Simple , compact, electrically and optically efficient (small footprint and low power consumption by fiber amplification)
>Compatibly powerful and reliable (realized by high brightness, high power semiconductor lasers as pumping light)
>Maintenance free (the entire optical fiber setups without lenses, mirrors)
>multilingual, more than 11 foreign languages
>3 years warranty .
4.What's the function of fiber laser?
Fiber Laser is only used to cut metals like Stainless Steel, Carbon/Mild Steel, Galvanized Steel, etc. Non-metal is not ok.
5.What's the max. cutting thickness?
Cutting thickness is related to laser power.
1000W: 5mm stainless steel, 12mm carbon steel
2000W: 10mm stainless steel, 18mm carbon steel
3000W: 10mm stainless steel, 20mm carbon steel, 10mm aluminum, 7mm brass, 4mm copper
4000W: 12mm stainless steel, 22mm carbon steel, 10mm aluminum, 10mm brass, 6mm copper
Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet metal.
Please tell us what you need
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ?
If you have any questions, Please contact us.
